New crates

  The wood is dried according to the ISPM 15 standards. After this the wood can be well planed. The standard type of wood is European pine and spruce. For increased durability these may be combined with larch wood. Larch offers better resistance to rotting.   For turning and moving it is important that the crate is well braced. A brace in the side wall is usually sufficient. Crates that will be turned on their sides also need braces at the front and back. The braces are chamfered. Besides the braces, D4 glue is also used for each connection to keep the crate square.   20 mm boards are standard, but in certain places it is also possible to use 22 or 24 mm. Examples of this are the base or the top of the pallet.

A selection from our range:

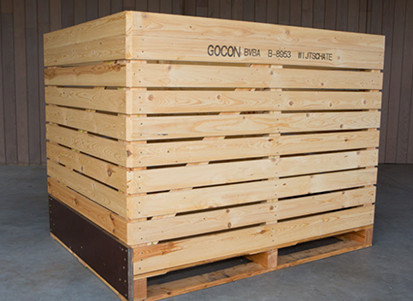

Potato or carrot crates 1.6 x 1.2 x 1.25 m


  • Standard ventilation
  • Concrete plywood connection
  • Four larch wood boards on outside of pallet
  • Four braces inside

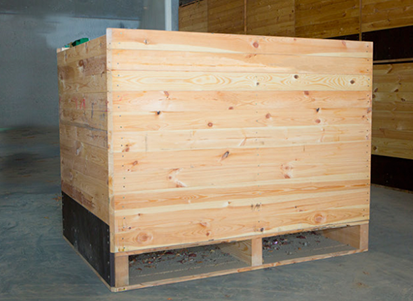

Onion crate 1.6 x 1.2 x 1.25 m

  • Higher pallet beams for more air flow
  • One-layer ventilation
  • Concrete plywood
  • Four larch wood boards on outside of pallet
  • A brace on each side

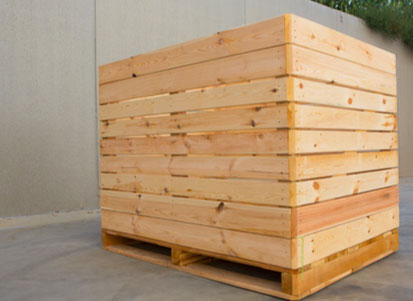

Crate for chicory roots 1.6 x 1.2 x 1.25 m


  • Standard ventilation
  • Bracket connection
  • Pallet entirely of larch wood
  • 10 mm openings all around
  • A brace on each side

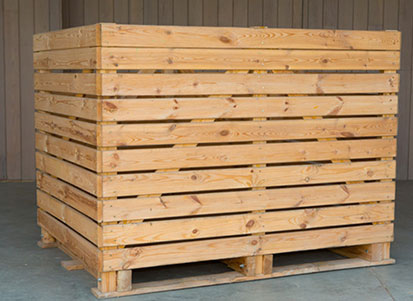

Potato or carrot crates 1.6 x 1.2 x 1.23 m


  • Standard ventilation
  • Nut-bolt connection
  • Six braces inside

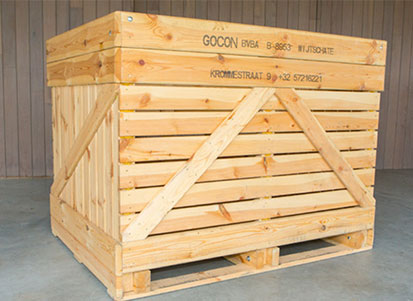

Potato or carrot crates 1.6 x 1.2 x 1.23 m


  • Standard ventilation
  • Nut-bolt connection: underneath/on top
  • At top of front and back: one board 4 cm thick
  • At top of sides: one board = 2.5 cm thick
  • Capacity: 1200 kg potatoes
  • Braces on the outside

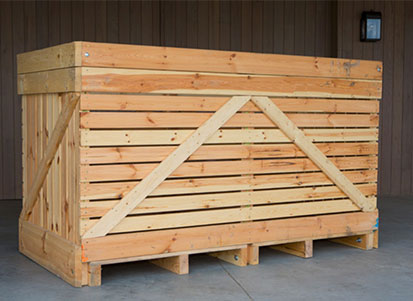

Potato or carrot crates 2.4 x 1.2 x 1.4 m


  • Standard ventilation
  • Nut-bolt connection: underneath/on top
  • At top of front and back: two boards = 4 cm thick
  • At top of sides: two boards = 3 cm thick
  • Braces on the outside
  • Capacity 2000 kg potatoes

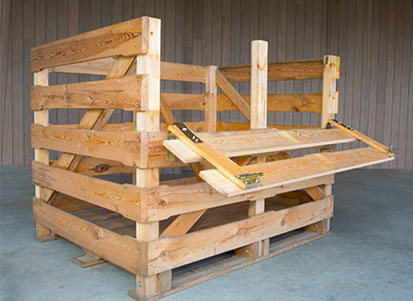

Crate for red or white cabbage 1.6 x 1.2 x 1.2 m


  • The front can be opened with hinges and locks.
  • Openings of 8 to 9 cm for dry ventilation and fast cooling of cabbages.
  • Option of a four-way pallet
  • Six braces
  • Nut-bolt connection

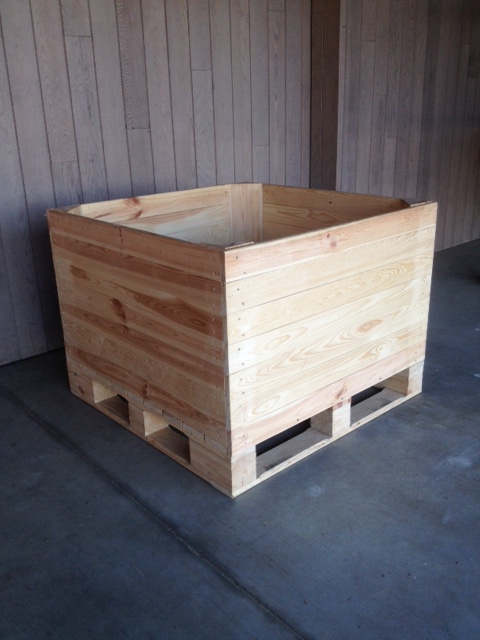

Fruit crate 1.2 x 1.0 x 0.8

  • Other dimensions possible
  • Four-way pallet possible

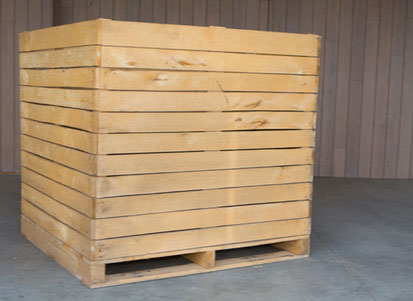

Hardwood crate 1.3 x 1.15 x 1.25 m


  • Type of wood: beech/larch
  • Bracket connection
  • Bracket connection
  • Four braces
